DIY Guitar Kit, Black MJ (Ash, Chrome)
Build Easily Your Own Unique Guitar: Create your dream DIY Guitar Kit, Black MJ (Ash, Chrome) in just three simple steps: painting, assembling, adjusting. Easy enough for beginners but rewarding for those willing to explore deeper finishing techniques. Enjoy solderless electronics for effortless setup. Ideal for aggressive rock styles.
Premium Quality & Materials: Features solid ash wood body, Canadian maple neck, and ebony fretboard with a bone nut and chrome hardware for premium quality at an affordable price.
Support & Community: Join our customer build showcase, downloadable user guides and strong technical support for a rewarding guitar-building journey. Become part of a thriving DIY and musician community. Whether as a personal project or a meaningful gift, we provide quality support and an advantageous return policy.
*Free & Next Day Delivery in the UK and France | 3-5 Working Days Delivery to Europe | 7 Working Days Delivery to the US | Worldwide Delivery Available

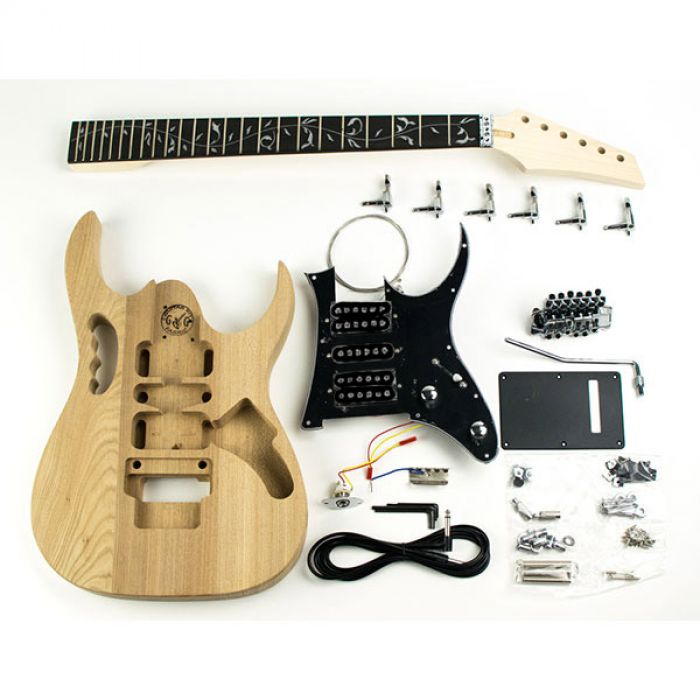

Our MJ Guitar kits include everything you need to build a sophisticated MJ style guitar. Featuring chrome components and an ebony fretboard, this kit offers a distinct look and feel.
Guitar Build Levels and Challenges
The Black MJ Guitar Kit is ideal for beginner builders thanks to its accessible assembly and setup process. While painting requires some care—due to the slightly porous mahogany body and intricate shape that can lead to orange peel effects—the need for grain filler is moderate, and the maple neck doesn’t require any. Assembly is easy with a bolt-on neck that lacks inclination and a pre-positioned Floyd Rose-style tremolo bridge, making integration simple. Sound and playability adjustments are also beginner-friendly, as the tremolo bridge allows for precise string height and intonation tuning, offering more flexibility than a fixed bridge and making initial setup straightforward.
Key Features
- Solid Ash Wood body, MJ style, with bolt-on joint
- Canadian Maple neck with Ebony fretboard, 24 frets, and white perloid vine inlay
- Chrome hardware including Floyd Rose bridge and a 5-way selector switch
We've got your back. Our step-by-step guide walks you through the full build process.
Discover how others brought their kits to life in the Customer Showcase.
Dive deeper into this guitar's legacy with our Model Review — featuring its history, style, and legendary players.
Specifications
| General | |
| Scale Length | 648mm (25.5") |
| Hand Orientation | Right Handed |
| Neck / Body Fit | Bolt-On Joint |
| String Number | 6 |
| Guitar Body | |
| Wood Type | Solid Ash Wood |
| # of Wood Block | Made of 2 to 3 blocks of wood |
| Neck Pocket Dimension (LxWxH) | 75x55.5x20mm (2.95"x2.18"x0.79") |
| Body Height (H) | 45mm (1.77") |
| Cavity/Routing | Pick-up, Bridge, Neck, Wiring routing, cover plates and switch |
| Pilot Predrill | No pre-drilled pilot holes except for the neck pocket |
| Paint | No lacquer, No sealer, No finish |
| Guitar Neck | |
| Tuner Pre-Drilled Holes | 10 mm |
| Wood Type | Canadian Maple |
| Fretboard | Ebony |
| Inlay | White perloid vine inlay |
| Nut | Metal Chrome Nut (42mm) |
| Fret Number | 24 |
| Fret Size | Jumbo Fret |
| Fret Material | CuproNickel |
| Neck Radius | 305mm (12") |
| Neck Profile | Modern C |
| Truss Rod | Double action, on the head side |
| Paint | No lacquer, No sealer, No finish |
| Guitar Hardware | |
| Color | Chrome set with black Pickguard |
| Bridge | Floyd Rose - Double locking tremolo, Chrome |
| Pick-up | 2 Double Coil & 1 Single Coil pick-up, Black and Chrome (H-S-H Configuration) |
| Switch | 5-way selector, Chrome |
| Machine Head | Inline, Chrome |
| Knobs | 1 Volume & 1 Tone |
| Neck Joint Plate | Screw with cylinder nut, Chrome |
| Strap Button | Chrome |
| Covers | Back Cover Floyd Rose Bridge, Black |
| Wiring | Solderless Wiring |
*This product is not affiliated with, endorsed by, or in any way connected to Fender Musical Instruments Corporation, Gibson Brands, Inc., PRS Guitars, Rickenbacker International Corporation, Ibanez Guitars (Hoshino Gakki), Music Man (Ernie Ball, Inc.), Epiphone, Squier, LAG Guitars, Gretsch, Schecter Guitar Research, Jackson Guitars, ESP Guitars, or any other registered trademarks of these or other companies.
