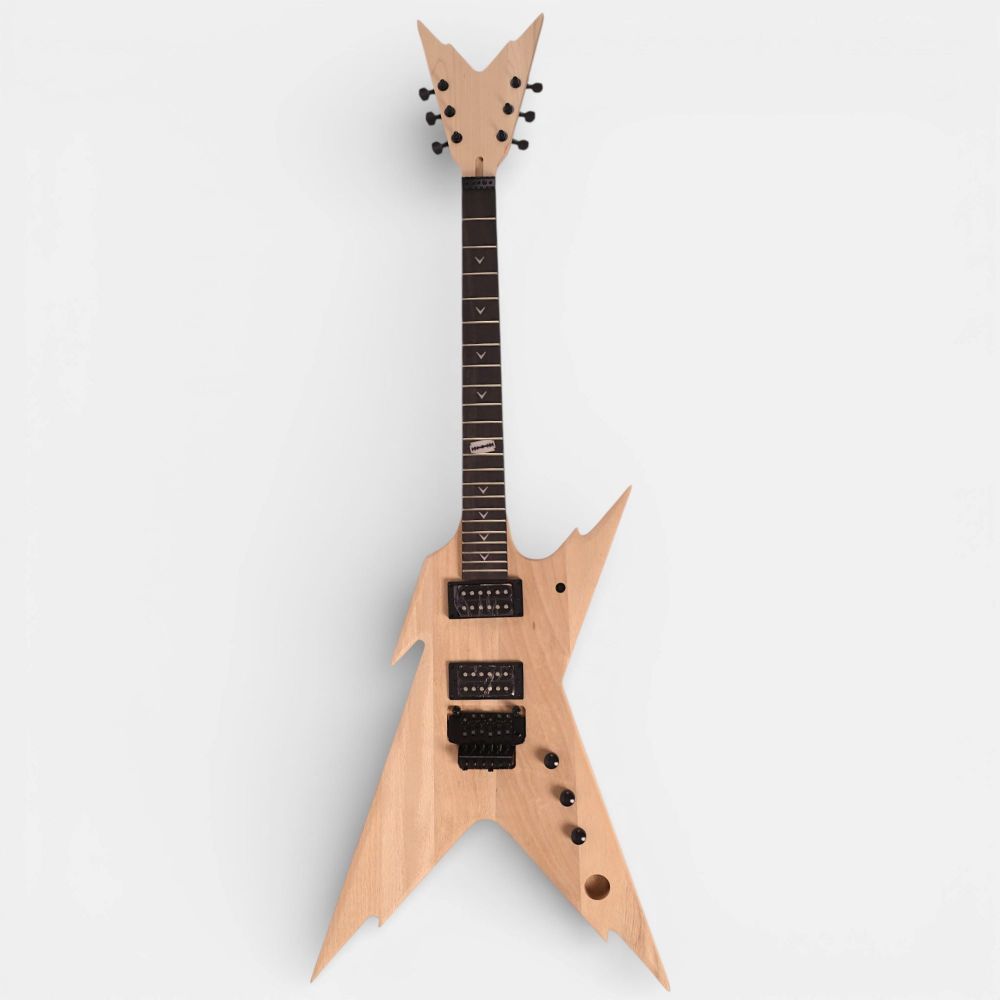

DIY Guitar Kit — Dean Razorback style, mahogany body, black hardware
DIY kit inspired by the Dean Razorback electric guitar. Paint, assemble, and adjust with ease using solderless electronics. Suitable for all skill levels and versatile music genres.
Body wood: Solid mahogany | Neck wood: Canadian maple | Fretboard: Ebony | Hardware finish: Black | Scale length: 647 mm (25.5") | Neck joint: Bolt-on
- Solderless wiring simplifies assembly
- Double-locking tremolo bridge with individual adjustments
- Double-action truss rod for precise neck setup
- Beginner-friendly build; effort dictates results
- Dot inlays on ebony fretboard
This razorback kit is a Dean Razorback DIY kit built for sharp, aggressive looks and tone. As a DIY metal guitar kit with solderless electronics, it makes assembly straightforward — an ideal beginner electric guitar kit that still rewards experienced builders. Browse more electric guitar kits to compare models.
Build Considerations
- Beginner-friendly assembly: bolt-on neck with no inclination eases alignment.
- Finishing: mahogany is slightly porous and may require some grain filling; maple neck typically requires none. Sharp body contours demand careful painting to avoid orange peel.
- Tremolo bridge adds steps for accurate positioning and setup; individual intonation and string height adjustments available.
- Solderless wiring streamlines electronics installation.
Key Features
- Mahogany body with Razorback-style contours
- Canadian maple neck; ebony fretboard with dot inlays
- Black hardware set with double-locking tremolo bridge and humbucker pickups
- Double-action truss rod
- Solderless wiring
Specifications
| General | |
| Scale Length | 647mm (25.5") |
| Hand Orientation | Right Handed |
| Neck / Body Fit | Bolt-On Joint |
| String Number | 6 |
| Guitar Body | |
| Wood Type | Solid Mahogany |
| # of Wood Block | 2 to 3 blocks |
| Neck Pocket Dimension (L×W×H) | 65×55.5×15mm (2.56"×2.19"×0.63") |
| Body Height | 40mm (1.57") |
| Cavity/Routing | Pickups, bridge, neck, wiring routing, cover plates, switch |
| Pilot Predrill | Neck pocket only |
| Finish | No lacquer, sealer, or finish |
| Guitar Neck | |
| Tuner Hole Diameter | 10mm |
| Wood Type | Canadian Maple |
| Fretboard | Ebony |
| Inlay | White dot inlay with details |
| Nut | Metal black nut (42mm) |
| Fret Number | 22 |
| Fret Size | Jumbo |
| Fret Material | Cupronickel |
| Neck Radius | 305mm (12") |
| Neck Profile | Modern C |
| Truss Rod | Double action, adjustment at head |
| Finish | No lacquer, sealer, or finish |
| Hardware | |
| Color | Black |
| Bridge | Double-locking tremolo (Floyd Rose style), black |
| Pickups | 2 humbuckers, black (H-H) |
| Switch | 3-way toggle, chrome with black tip |
| Machine Heads | 3R3L, black |
| Controls | 2 volumes, 1 tone |
| Neck Joint Plate | Black |
| Strap Buttons | Black |
| Covers | Back cover tremolo; back cover knobs; switch cache, black |
| Wiring | Solderless |
